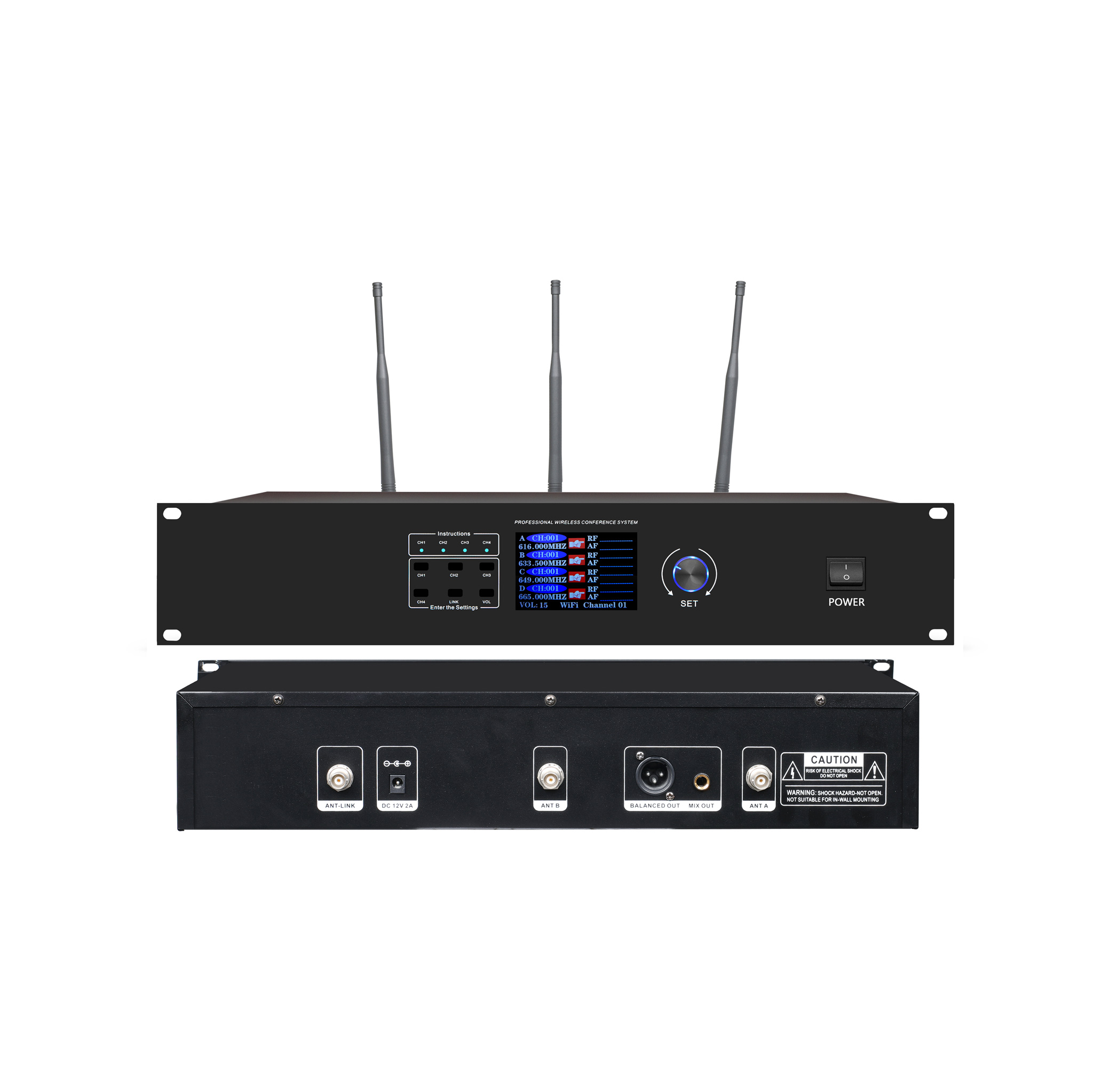

Conference Host
Model:DK-2600M
3.5-inch color display with hierarchical menu design for simple and convenient operation.
Four channels clearly display frequency values and channel signal indicators.
Easy and quick installation for engineering projects; for conference rooms or studios with about 100 participants, basically no debugging is needed to complete the installation efficiently.
Automatic frequency tracking and locking function; no manual frequency matching required, making the conference unit ready to use immediately.
Built-in 60 WIFI communication channels that allow multiple devices to operate simultaneously without interference.
Both control and audio signals use wireless high-frequency communication, eliminating the need for microphone wiring, making installation simple, convenient, and flexible.
Extremely simple functional operation; one-button access makes the operation clear at a glance.
Built-in advanced encrypted communication algorithm to completely prevent communication errors and false operations.
Chairman priority function allows one-button shutdown of all online delegate units.
Each system supports up to 100 microphones; the number of simultaneous speakers can be set from 1 to 4, with a maximum of 4 chairmen allowed to speak simultaneously.
Conference units have an automatic shutdown feature: if the main unit power is off for more than 30 seconds, the conference units will automatically power off to save energy.
Technical Parameters
Operating Voltage: DC 12V–14V, 2A
Operating Current: 600 mAh
Power Consumption: 5W
Receiving Sensitivity: -105 dBm
Audio Output Voltage: 1V
Effective Receiving Distance (line of sight, no obstruction): 60 meters
Audio Frequency Response: 50 Hz – 15 kHz
Carrier Frequency: UHF 600 MHz – 700 MHz
Frequency Stability: ±0.001%
Frequency Spacing: 250 kHz
WiFi Channels: 60
Display Type: 3.5-inch TFT color display
Signal-to-Noise Ratio (S/N): > 85 dB
Total Harmonic Distortion (THD): < 0.01%
