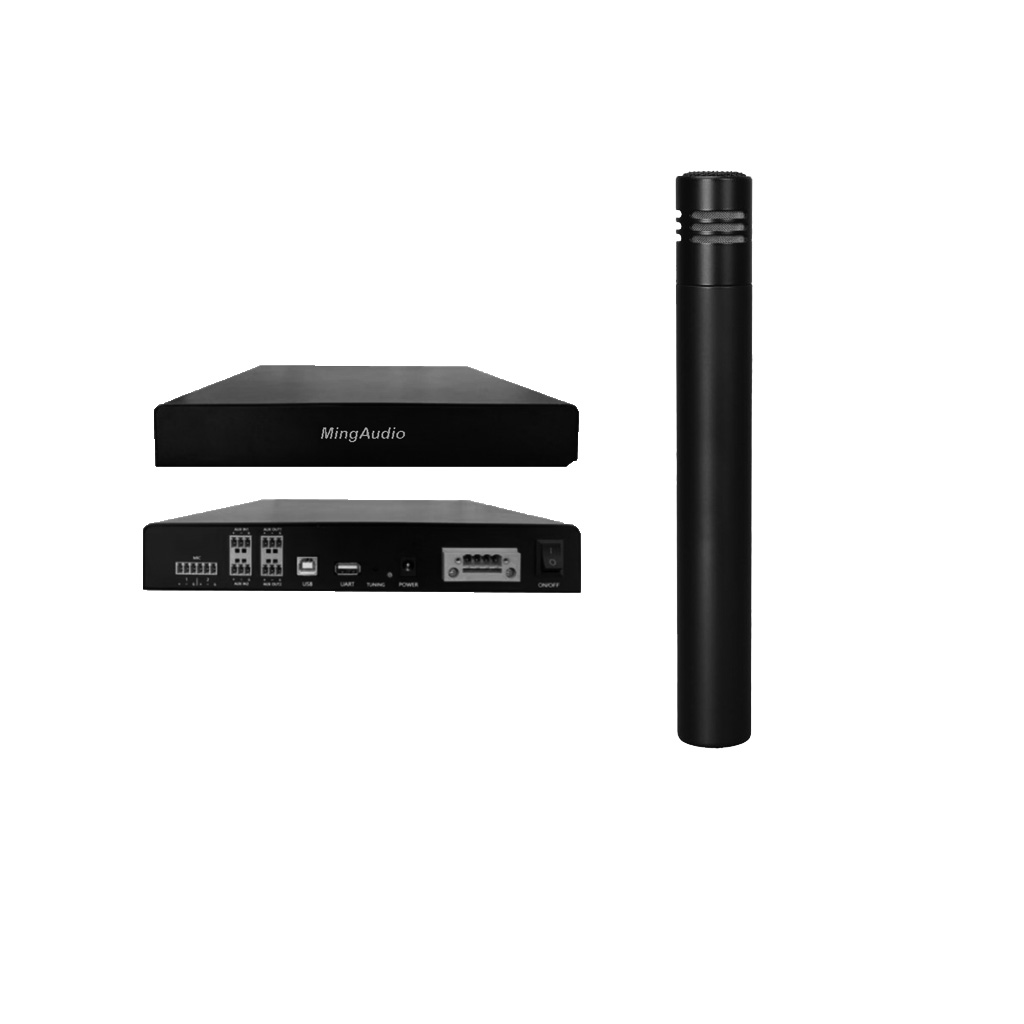

EG-0808

Technical Specifications

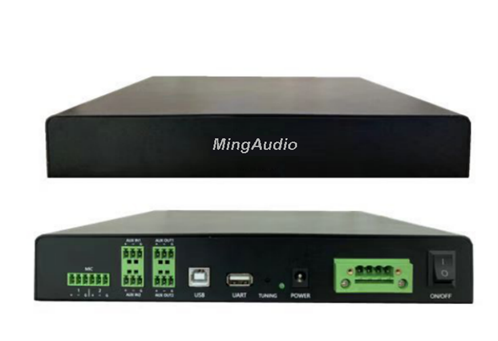

Digital Audio Processing Host

• 2 × balanced mic inputs, 1 × stereo input

• 1 × stereo output, 1 × amplifier output

• 1 × USB audio I/O

• 1 × USB control port

• Input resolution: 48kHz / 24bit

• Dynamic range: >105 dB (A-weighted)

• 48V phantom power

• Frequency response: 50Hz – 20kHz (±2dB)

• THD+N: ≤0.05% @1kHz, +2.2dBu

• Max input gain: 40dB

• Mic input impedance: 2kΩ

• Line input impedance: 5kΩ

• Amplifier output: 2 × 120W @4Ω

Professional Capacitance Microphone

• Type: Condenser Microphone

• Polar Pattern: Cardioid

• Frequency Response: 20Hz – 20kHz

• Sensitivity: 12mV/Pa

• Nominal Impedance: ≤1500Ω

• Recommended Load Impedance: ≥1kΩ

• S/N Ratio: 65dB (1kHz at 1Pa)

• Max SPL (THD <0.5%): 140dB SPL

• Operating Temperature: -10° to 50°C

• Current Consumption: ≤3mA

• Connector: XLR-3 type

• Dimensions: Ø21mm × 141mm

• Weight: 176g

• Finish: Black paint

• Body Material: Brass
